Portabatch

CMQ ENGINEERING / CONCRETE / Portabatch

Portabatch

A Portabatch™ is a complete front end loader fed concrete batching plant mounted on a specially designed chassis.

CMQ has suppled over 125 Portabatch plants to companies throughout Australia, New Zealand and Papua New Guinea since 1984. Portabatches work on a majority of mine and project sites throughout Australia. All are still operating, they are extremely reliable and robust while simple to operate and maintain.

FEATURES

  • No crane required
  • Setup / takedown within 2–3 hours
  • Produces 2,472 – 2,648 ft3/hr — 10 loads per hour

Components

  • 55-ton capacity cement storage silo
  • 129 cubic foot aggregate weigh hopper
  • 5-ton capacity cement weigh hopper
  • 2,113 gallon water storage tank
  • 30-inch discharge conveyor
  • Chassis is specially designed with triable assembly complying with ADR38 Australian Standards
  • Electrical wiring using steel armored cable
  • 50 KW generator
  • 28 CFM air compressor
  • Remote grease lines

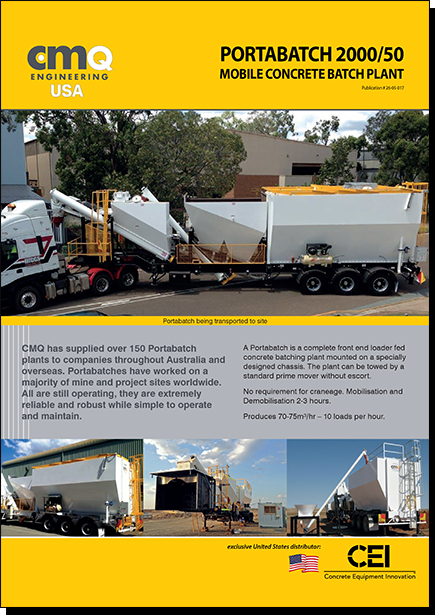

Portabatch being transported to site.

Portabatch with 50T GP cement silo.

Want to find out more about our Portabatch?

Queensland registration.

Electrically operated wind down leveling legs.
