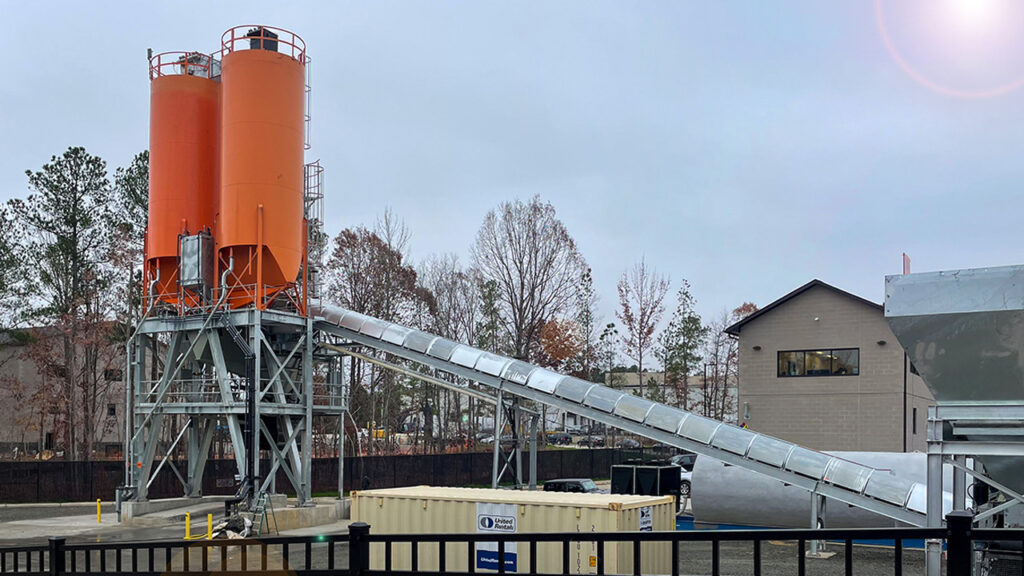

Advantage 250™ Concrete Batch Plant Installation in Raleigh, North Carolina
A High-Production Ready Mix Concrete Plant Built for the Triangle Region
The Raleigh-Durham-Chapel Hill region — better known as North Carolina’s Research Triangle or simply “The Triangle” — has become one of the fastest-growing construction markets in the southeastern United States. Fueled by continued population growth, expanding infrastructure, industrial development, and commercial construction, ready mix concrete producers throughout the region face increasing pressure to deliver more concrete, more efficiently, and with uncompromising quality.
Meeting that demand requires more than additional mixer trucks. It requires a concrete batch plant capable of producing high volumes of consistently accurate concrete, hour after hour, day after day. That’s exactly what one Raleigh-area producer found with the CMQ Engineering Advantage 250™ Concrete Batch Plant.
Designed Around a Challenging Site
Every concrete batch plant installation presents unique site conditions, and one of the defining characteristics of this Raleigh-area project was the property’s limited linear footprint. Rather than arranging the plant in a traditional straight-line configuration, CMQ Engineering’s design team took advantage of one of the Advantage 250™’s unique engineering features: the ability to position the aggregate blending unit at varying angles relative to the plant’s charging conveyor—including up to 90 degrees when site conditions require it.

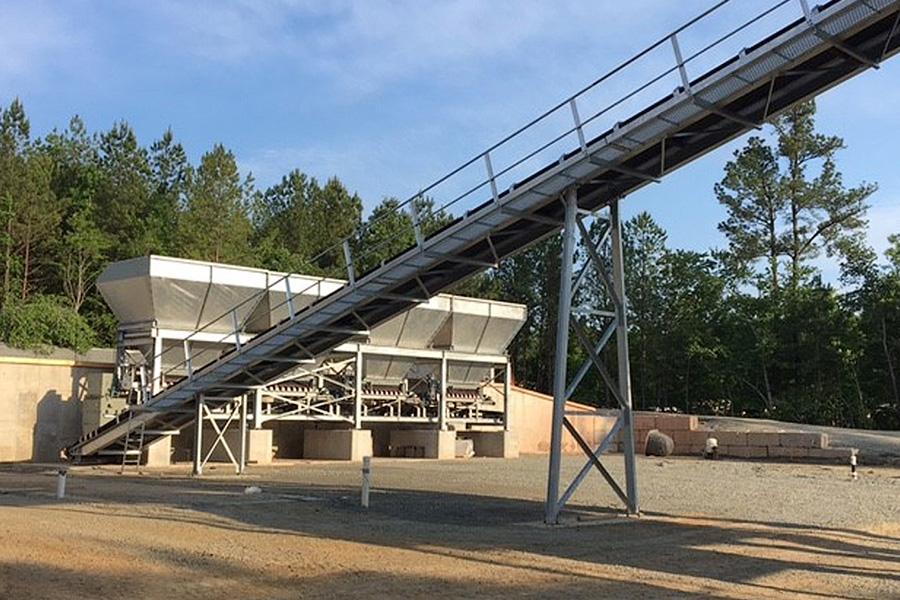

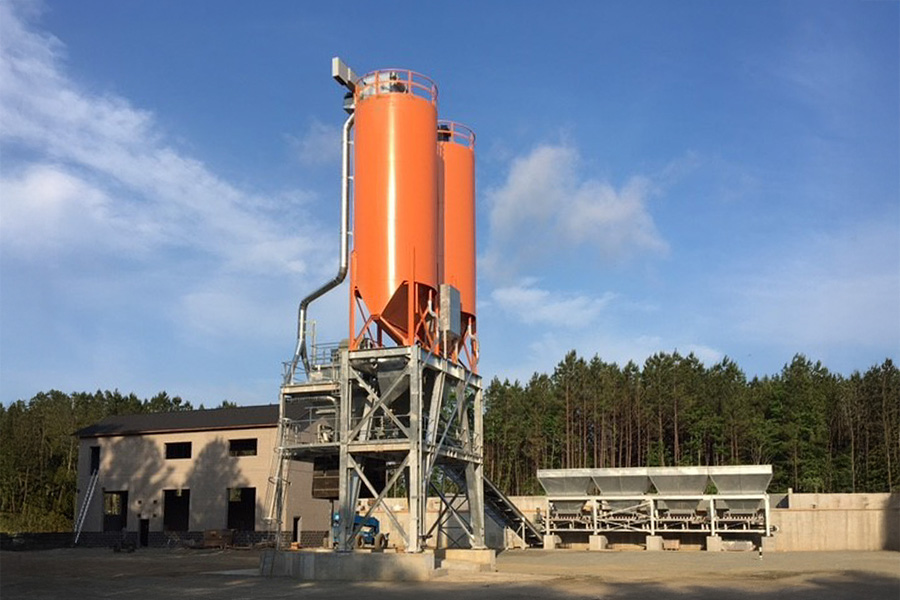

For this installation, the standard four-bin aggregate blending unit was positioned perpendicular to the charging conveyor, allowing the entire plant to fit efficiently within the available property while maintaining the same production capacity and operating efficiency as a linear layout. This design flexibility enables the Advantage 250™ to be tailored to a wide variety of property constraints without compromising performance.

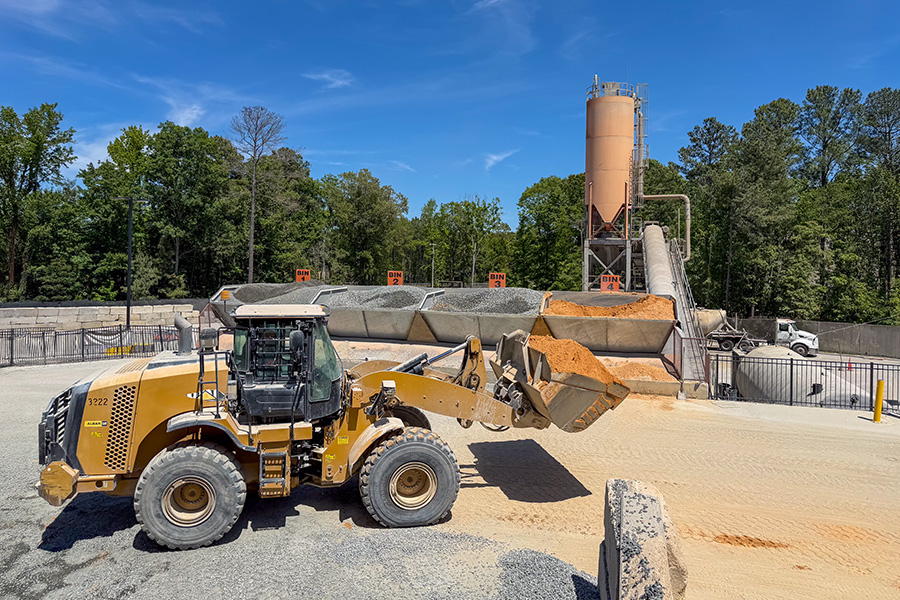

The rolling terrain of North Carolina’s Piedmont region provided another opportunity to maximize the site’s natural features. Built into a hillside, the aggregate blending unit sits alongside a retaining wall, while aggregate stockpiles are located on a paved upper drive directly above the plant. Front-end loaders can simply drive into the elevated stockpile area and load the four galvanized aggregate bins from grade, eliminating the need for a dedicated loading ramp.
By adapting the plant layout to both the property’s geometry and the natural topography, CMQ Engineering delivered a highly efficient installation that makes excellent use of the available space while simplifying daily plant operations.
Built for High Production

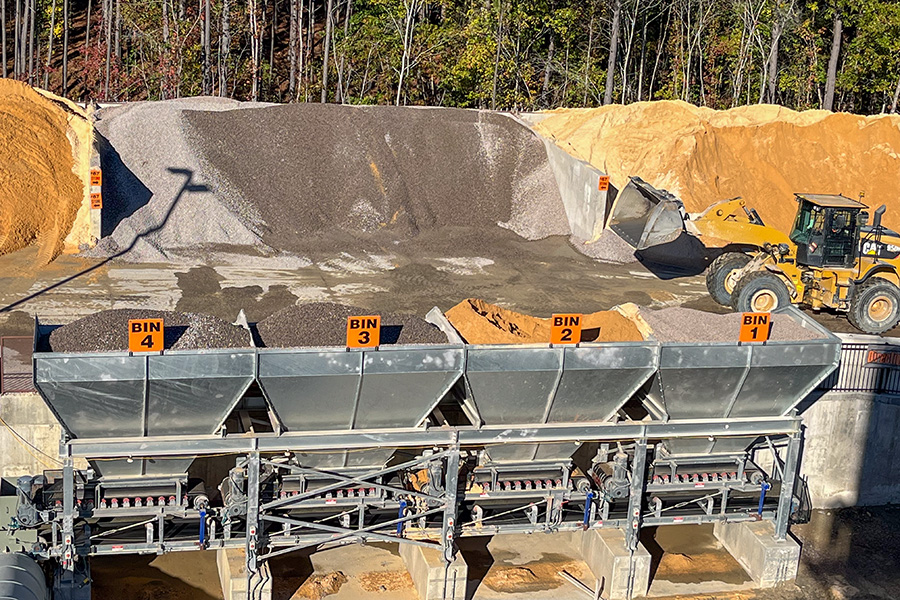

Designed to produce up to 250 cubic yards per hour, the Advantage 250™ concrete batch plant combines precision with speed. Its four-bin inline aggregate blending system continuously weighs each aggregate component in real time, creating exceptionally accurate aggregate blends before material reaches the mixer. Unlike traditional repose-style aggregate batching, inline weighing minimizes segregation while improving consistency from batch to batch.
The result is faster batching, improved mix uniformity, and greater production capacity — all while maintaining exceptional concrete quality. For ready mix producers serving the rapidly expanding Raleigh metropolitan area, those advantages translate directly into more trucks loaded and more concrete delivered each day.
Proven Performance in North Carolina
Specifications on paper tell only part of the story. Since entering operation, this Raleigh-area Advantage 250™ has produced over 460 thousand cubic yards of ready-mixed concrete during its first four years of year-round production.
Even more impressive is its operational reliability.
During that time, plant personnel report no operational shutdowns resulting from plant equipment failures, allowing production to continue day after day with the dependability required by one of the Southeast’s busiest construction markets. When every minute counts, reliability isn’t simply a convenience — it’s a competitive advantage.
Loading Trucks in Just 2½ Minutes
Production speed means little if trucks spend their day waiting beneath the batch plant. Operators of this installation consistently report complete truck loading times of 2½ minutes flat, allowing mixer trucks to return to the jobsite faster while reducing congestion within the plant yard. Shorter batch cycles help improve fleet utilization, increase daily production capacity, and keep projects supplied with fresh concrete throughout the day.
Simple, Intuitive Plant Control

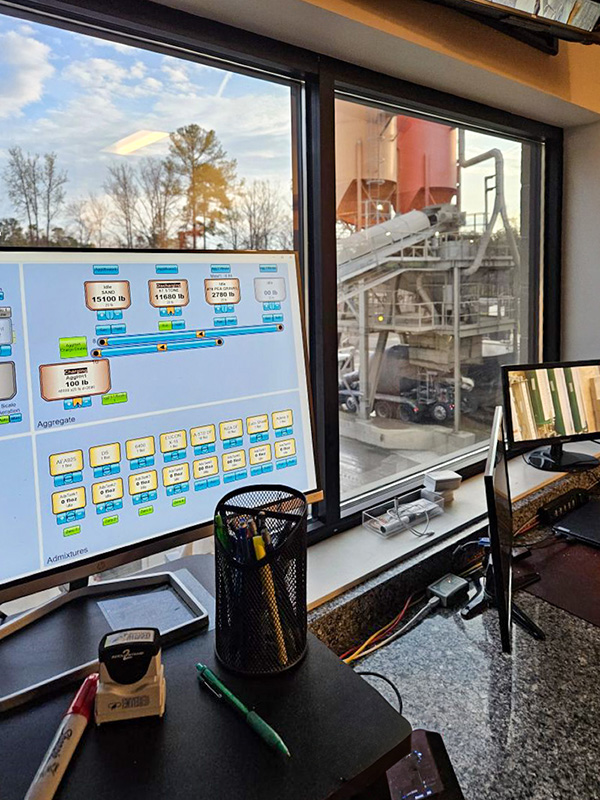

Each Advantage 250™ supplied by CMQ Engineering USA is equipped with the Jonel plant control system, providing operators with an intuitive interface that makes day-to-day batching straightforward and efficient. The system allows operators to monitor production, manage mix designs, track inventory, and oversee plant performance from a single, easy-to-use control platform. Clear displays and logical workflows reduce operator workload while providing the information needed to maintain consistent concrete quality throughout every production shift.
Combined with the mechanical reliability of the Advantage 250™, the control system helps create a plant that is both productive and remarkably easy to operate.
Supporting Growth Throughout North Carolina and the Southeast
Although this installation serves the Raleigh market, its success reflects the needs of ready mix producers across North Carolina, South Carolina, and the greater Southeastern United States. Whether supplying residential growth around Charlotte, commercial development in Greensboro, infrastructure projects throughout the Carolinas, or expanding metropolitan markets across Georgia, Tennessee, Virginia, Alabama, and Florida, today’s concrete producers require equipment that combines production capacity, reliability, and long-term operating efficiency.
The Advantage 250™ concrete batch plant was engineered specifically to meet those demands.
Looking for a Ready Mix Concrete Plant in North Carolina?
If you’re planning a new ready mix concrete plant or replacing aging production equipment in Raleigh, Durham, Chapel Hill, Charlotte, Greensboro, Winston-Salem, Asheville, Wilmington, Greenville, Columbia, Charleston, or anywhere throughout North Carolina, South Carolina, or the Southeast, CMQ Engineering USA offers proven concrete batching solutions backed by decades of engineering experience.
The Advantage 250™ continues to demonstrate why producers choose CMQ Engineering when dependable, high-volume concrete production matters most.
Contact CMQ Engineering USA today to learn how an Advantage 250™ Concrete Batch Plant can be configured for your operation and your site—no matter the layout challenges.
