Advantage 250™ Concrete Batch Plant Installation Near Kerrville, Texas

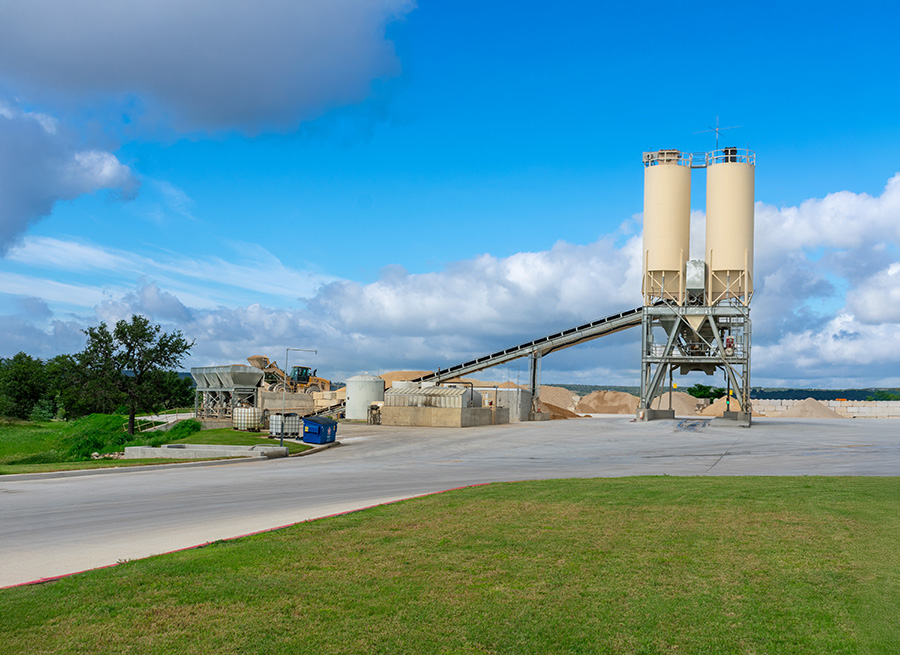

Advantage 250™ concrete batch plant located at a ready mix concrete facility near Kerrville, Texas.
Advantage 250™ concrete batch plant at a ready mixed concrete production facility near Kerrville, Texas

High-Performance Concrete Production for the Texas Hill Country

Concrete producers throughout the Texas Hill Country face a unique combination of challenges. Rapid population growth, expanding commercial development, highway construction, municipal infrastructure projects, and residential construction all require a dependable supply of high-quality ready-mixed concrete. At the same time, producers must maintain consistent concrete quality while operating efficiently in the demanding climate of Central Texas.

Located in the heart of the Texas Hill Country, this installation near Kerrville provides high-capacity concrete production while taking advantage of CMQ Engineering’s precision inline aggregate blending technology and advanced batching controls. The result is a plant capable of producing consistent, high-quality concrete for projects throughout Kerrville, Fredericksburg, Boerne, Junction, Comfort, Bandera, Hunt, Ingram, and the greater San Antonio region.

Serving the Growing Central Texas Construction Market

The construction industry across Central Texas continues to experience strong demand. Communities throughout the Texas Hill Country require ready-mixed concrete for:

  • Commercial developments
  • Residential subdivisions
  • Highway and bridge construction
  • Municipal infrastructure
  • Industrial facilities
  • Agricultural projects
  • Public works improvements

For ready-mix producers serving Middle Texas, production consistency is every bit as important as production speed. Material variability, changing aggregate moisture, and inconsistent batching can all impact concrete quality and production efficiency.

The Advantage 250™ was engineered specifically to address those challenges.

Optional 3-Bin Aggregate Blending Unit

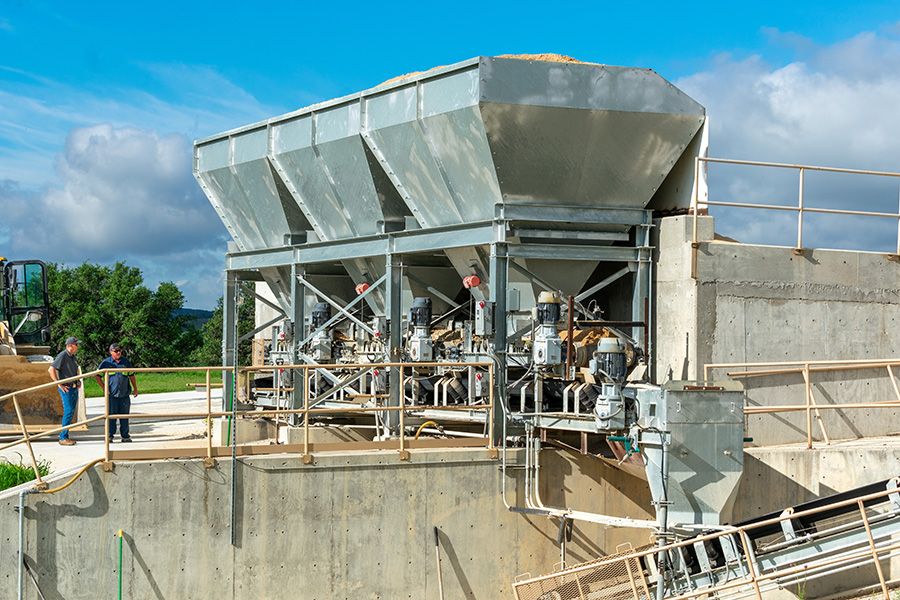

Optional 3-bin aggregate blending unit at the ready-mixed concrete plant near Kerrville, TX

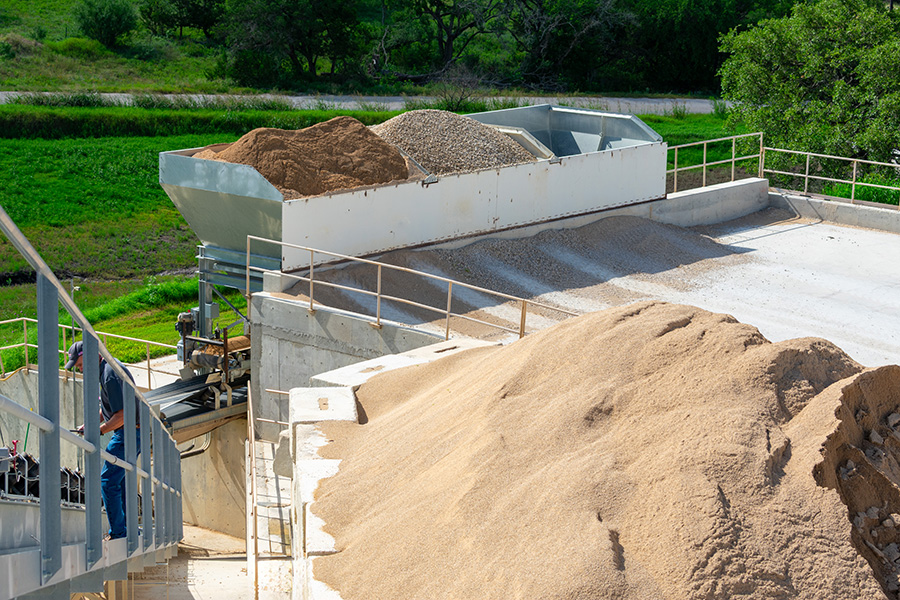

View of the aggregate blending unit and loading ramp.

This installation utilizes the optional three-bin aggregate blending system, providing an ideal solution for producers using a simplified aggregate mix while still benefiting from CMQ Engineering’s inline aggregate blending technology. Unlike conventional repose batch plants that weigh one aggregate at a time in a weigh hopper, the Advantage 250™ continuously weighs materials as they travel from each bin’s dedicated weigh belt. Aggregates are precisely blended in ribboned layers as they fall from the weigh belt onto the collecting conveyor below. This creates a more uniform aggregate blend, fully blending the materials before they even reach the mixer truck.

Benefits include:

  • Improved aggregate consistency
  • Reduced material segregation
  • More accurate batching
  • Better repeatability from load to load
  • Greater production efficiency
  • Stronger, superior-quality concrete

Whether producing residential foundation concrete, commercial mixes, or municipal specifications, the plant delivers the consistent batching that producers throughout Kerrville, Texas, and the surrounding Texas Hill Country require.

Real-Time Sand Moisture Monitoring

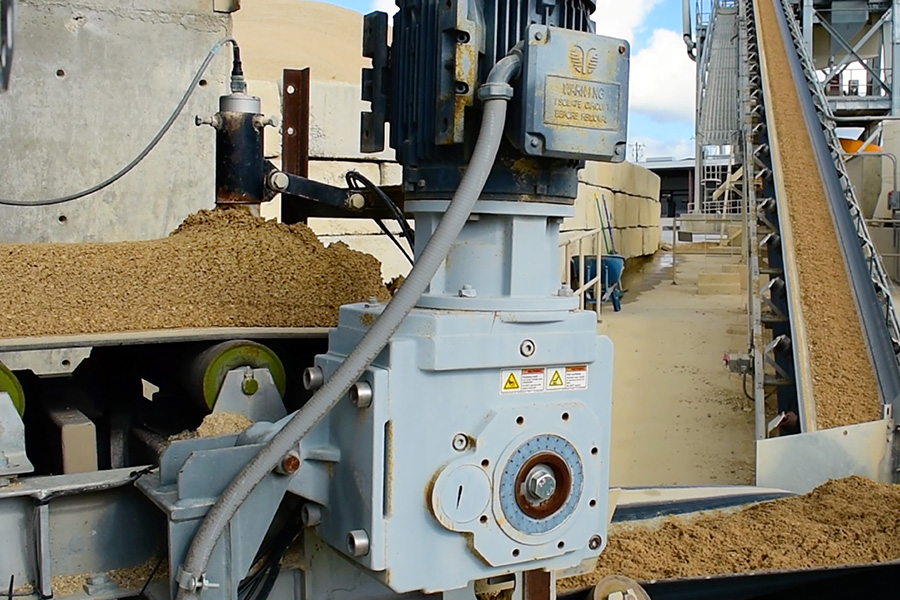

In-stream sand moisture metering at the Kerrville, TX concrete plant
The ready-mix plant near Kerrville, TX features in-stream sand moisture monitoring.

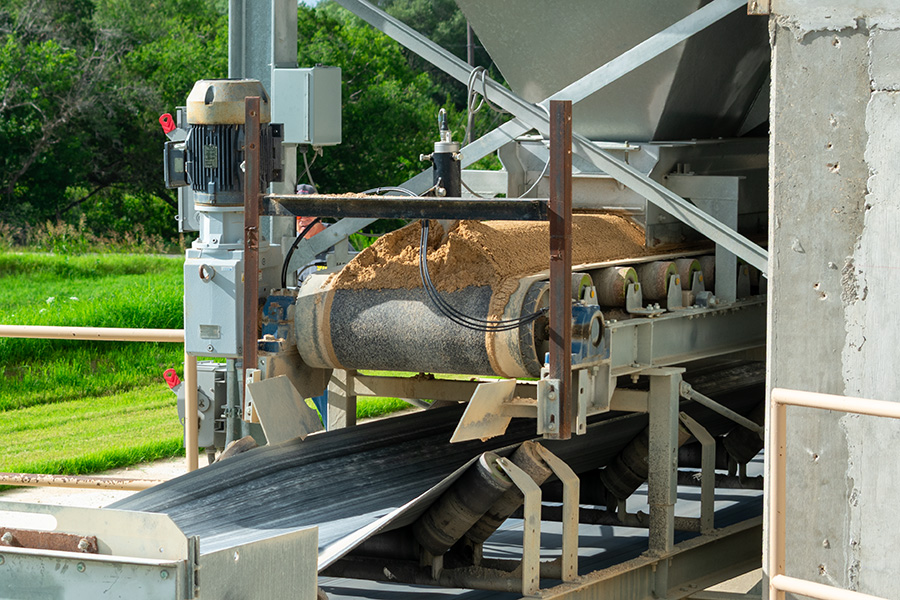

In-stream sand moisture monitoring feature of the Advantage 250™ concrete batch plant.
Frontal view of the in-stream sand moisture probe.

One of the most valuable features included with this Advantage 250™ installation is its stream-mounted sand moisture metering system.

Unlike traditional concrete batch plants that rely on periodic manual moisture tests — or moisture probes mounted inside aggregate bins — the stream-mounted probe continuously measures the moisture content of the sand as it moves through the batching process. This provides a real-time measurement of the actual material entering every batch, even as moisture conditions change throughout the day.

The moisture data is transmitted directly to the plant control system, which automatically adjusts the amount of mixing water added to each batch. The result is a more consistent effective water-to-cement ratio, helping the producer maintain target slump, compressive strength, finishability, and overall concrete quality without constant operator intervention.

For ready-mix concrete producers in the Texas Hill Country, and throughout Central Texas, where weather conditions can change quickly and aggregate moisture can fluctuate dramatically after rain events or during hot, dry afternoons, continuous moisture compensation helps eliminate one of the largest variables in concrete production.

The system also reduces the need for manual moisture sampling, minimizes operator adjustments, improves batching accuracy, and helps ensure every load of ready-mixed concrete leaves the plant with greater consistency. When combined with the Advantage 250™’s precision weighed water system and inline aggregate blending technology, the stream-mounted moisture probe gives producers a higher level of process control from the first batch of the day to the last.

Chisel-Nose Cement and Fly Ash Silos

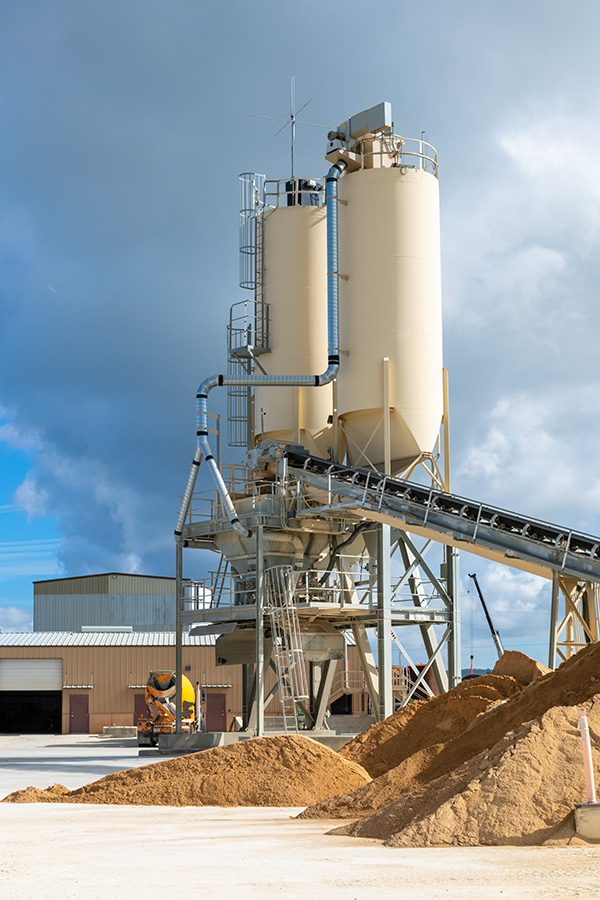

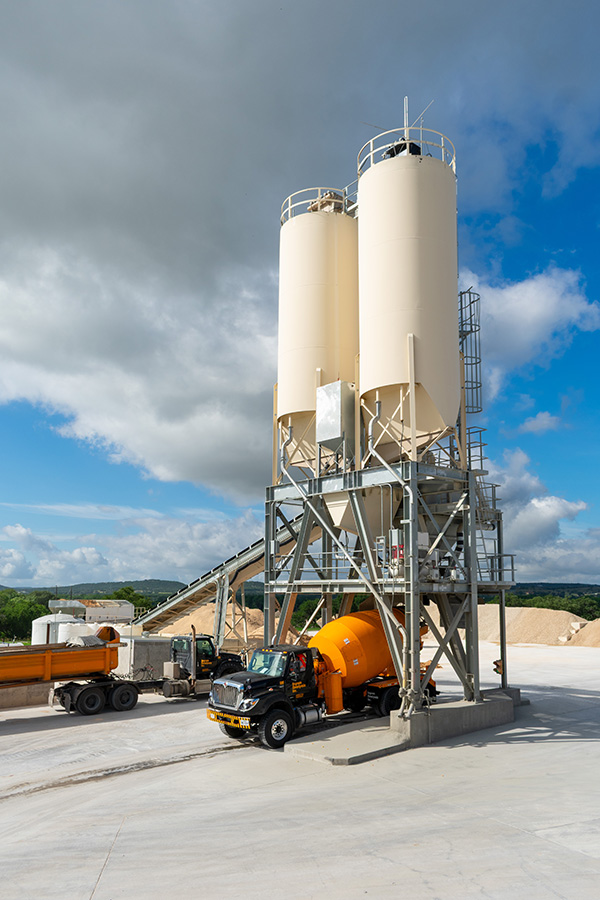

Chisel-nose silos for cement and fly ash at ready-mix concrete facility in central Texas.
Chisel nose silos with air slides and 1/2 rotary shutoff gates ensure fast loading of cement and fly ash.

This Advantage 250™ installation also features CMQ Engineering’s signature Chisel-Nose Silos for both cement and fly ash storage.

Traditional silos often leave material resting along the sides of the cone, increasing the potential for buildup and inconsistent material flow. CMQ Engineering’s chisel-nose design promotes a true first-in, first-out discharge pattern, helping to:

  • Improve material flow
  • Reduce bridging and buildup
  • Minimize stale cement inventory
  • Improve batching consistency
  • Reduce maintenance requirements

For ready-mix producers operating throughout Texas Hill Country and the greater San Antonio area, dependable cement flow contributes directly to reliable day-to-day plant performance.

Full-Batch Weighed Aggregate Holding Hopper

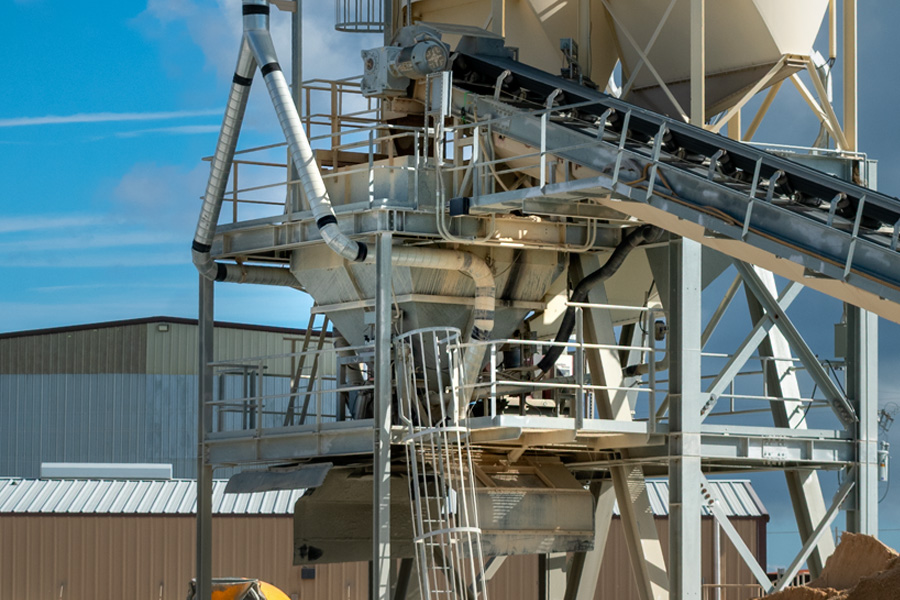

Weighed aggregate holding hopper at a ready mix concrete plant in central Texas.

The Advantage 250™ concrete batch plant includes, as one of its most important standard features: a 10 cubic yard full-batch weighed aggregate holding hopper. Unlike many conventional plants that discharge aggregate directly into the mixer, the Advantage 250™ first transfers the entire weighed aggregate batch into the holding hopper.

This design allows the plant operator to begin a new batch as soon as a loaded truck begins to roll — without the next truck needing to be in position first.

The benefits include:

  • Improved batching accuracy
  • Complete batch verification
  • Faster production cycles
  • Better truck loading efficiency

This feature is especially valuable for high-production ready-mix plants serving the expanding construction markets throughout Central Texas.



Precision Weighed Water System

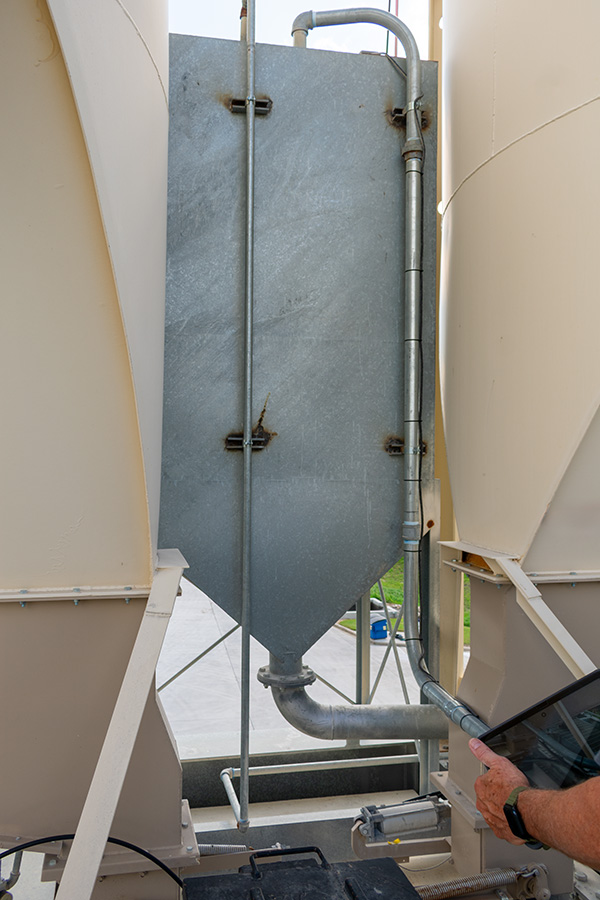

Holding tank for weighed water system at a ready mix concrete plant.

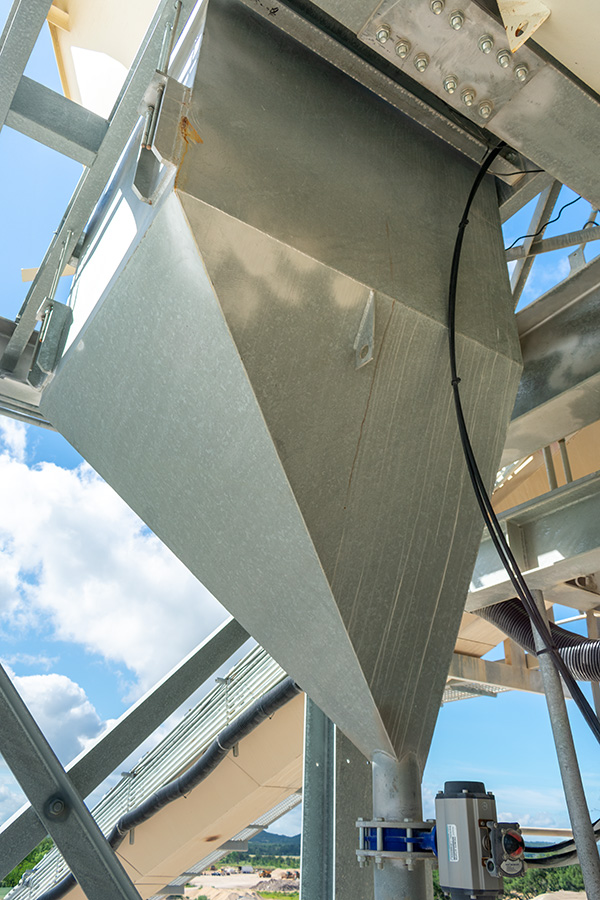

Weigh hopper for weighed water system at a ready mixed concrete plant in central Texas.

Accurate water measurement is critical to producing consistent concrete.

This installation includes a precision weighed water system, which measures mixing water by weight rather than relying solely on volumetric methods. The result is improved quality control and greater confidence for producers supplying demanding commercial and infrastructure projects throughout the Texas Hill Country area.

A Concrete Plant Built for Ready-Mix Producers Across Texas

As demand for ready-mixed concrete continues to grow across the Texas Hill Country, producers need batching equipment capable of delivering both productivity and precision.

Whether serving Kerrville, TX, Fredericksburg, Boerne, Bandera, Junction, Comfort, San Antonio, or other communities throughout Central Texas, this installation demonstrates how CMQ Engineering USA helps ready-mix producers consistently deliver high-quality concrete while improving operational efficiency.

Looking for a Concrete Batch Plant in Texas?

If you’re planning a new ready-mix concrete plant or upgrading an existing operation anywhere in Texas, CMQ Engineering USA delivers proven batching technology backed by decades of manufacturing experience.

CMQ Engineering is an established and proven concrete batch plant manufacturer. Since 1964, the company has designed, engineered, fabricated, installed, and commissioned high-performance concrete batch plants for producers operating in some of the world’s most demanding construction environments. Today, CMQ is recognized as Australia’s leading manufacturer of concrete batching plants, with a reputation built on engineering innovation, production efficiency, and long-term reliability.

To better serve the growing U.S. market, CMQ Engineering has established a Texas shipping and assembly hub near Houston, where major plant sub-assemblies arriving from Australia are received, assembled, and prepared for delivery to customers throughout Texas and across North America. This strategic Gulf Coast location helps streamline logistics, reduce project timelines, and provide responsive support for ready-mix concrete producers investing in new batching facilities.

From high-capacity ready-mix concrete plants to custom-engineered material handling systems, CMQ Engineering combines proven international manufacturing expertise with a growing presence in Texas. If you’re evaluating concrete batch plant manufacturers, ready-mix plant manufacturers, or concrete batching equipment for your next project, our team can help you design a plant that matches your production goals today — and supports your operation for decades to come.

Contact our team today to learn more about the Advantage 250™ Concrete Batch Plant and discover why ready-mix producers across North America are choosing CMQ Engineering’s innovative batching technology.
