When planning a new ready mix concrete plant, production capacity is only part of the equation. The site itself can be just as important.
Available acreage, property boundaries, existing structures, traffic flow, stockpile locations, terrain, and access for loaders can all influence how a concrete batch plant needs to be arranged. A plant designed around only one fixed configuration can create unnecessary compromises when the site doesn’t cooperate.
The Advantage 250™ concrete batch plant from CMQ Engineering takes a different approach.
One of the advantages of the Advantage 250™ design is its layout flexibility. The aggregate blending unit can be positioned at different angles relative to the charging conveyor, from a fully linear 0-degree configuration to a 90-degree configuration. Intermediate angles, including 45 degrees, are also possible.
That means the plant can be engineered around the site—not the site around the plant.
A 90-Degree Solution in Raleigh, North Carolina
An Advantage 250™ installation in Raleigh, North Carolina, provides a good example of how this flexibility can solve a difficult site challenge.
The Raleigh-area ready mix producer had a property with a limited linear footprint. Rather than forcing the plant into a conventional straight-line arrangement, CMQ Engineering positioned the four-bin aggregate blending unit at 90 degrees to the charging conveyor.
This perpendicular configuration allowed the high-production concrete batch plant to fit efficiently within the available property while maintaining the same production capacity and operating efficiency of the Advantage 250™ design.
The site’s natural topography provided another opportunity. The Raleigh plant was built into a hillside, with aggregate stockpiles located on an elevated paved drive above the blending unit. Front-end loaders can access the stockpiles from grade and load the aggregate bins directly, eliminating the need for a separate loading ramp.
The result is a ready mix plant layout designed around the actual property rather than a predetermined footprint.
Read the full Raleigh, North Carolina Advantage 250™ installation story.
One Plant Design. Multiple Configurations.
The Raleigh installation is not an isolated example. Advantage 250™ plants can be configured according to the requirements of each individual site.
At a Floresville, Texas installation, the aggregate blending unit and charging conveyor are arranged in a linear, 0-degree configuration. This traditional straight-line arrangement is well suited to sites where sufficient linear space is available.

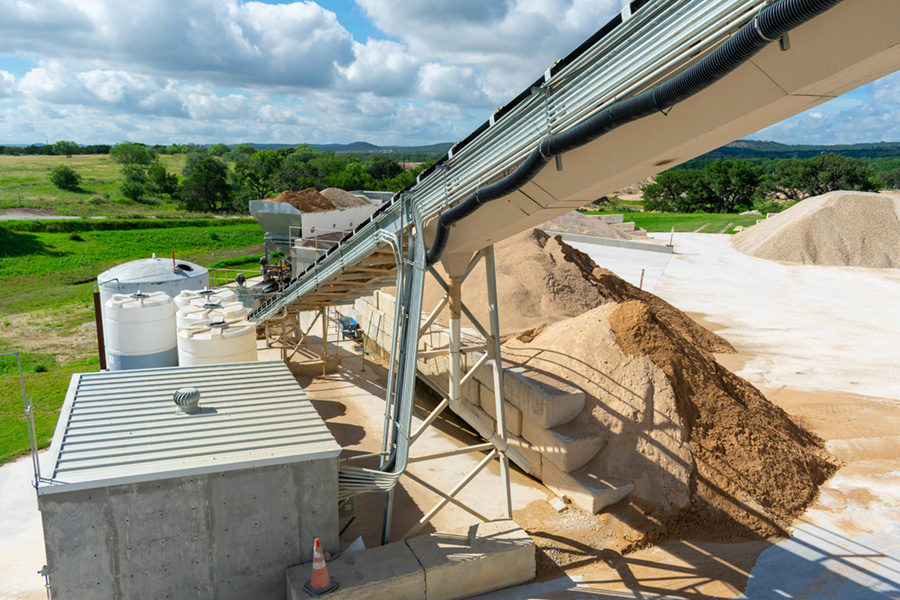

At another ready mix plant installation in Kerrville, Texas, the Advantage 250™ is configured at approximately 45 degrees, demonstrating another way the plant can adapt to available space and site geometry.
Three installations. Three different layouts. One fundamental plant design.
That flexibility can be particularly valuable for ready mix producers working with irregular parcels, constrained industrial sites, existing infrastructure, sloping terrain, or properties where maximizing usable space is essential.
Flexibility Without Sacrificing Production
Layout flexibility would have little value if changing the plant configuration meant sacrificing its production capabilities.
The Advantage 250™ is designed to produce up to 250 cubic yards per hour while using precision weigh belts to simultaneously meter the aggregate components of each mix. The aggregate blending system creates a precisely proportioned, continuously blended material stream before it reaches the mixer.
The result is a concrete batch plant that combines high production capacity with the ability to adapt its physical configuration to the site.
That is an important distinction for producers planning a new ready mix operation. The question is not simply, “How much concrete can this plant produce?” It is also, “How effectively can this plant be engineered into our property?”
With the Advantage 250™, the answer can be remarkably flexible.
A Concrete Batch Plant Engineered Around Your Site
For a concrete plant manufacturer, designing equipment that produces concrete efficiently is only part of the engineering challenge. The plant must also work within the realities of the property where it will operate.
From 0 degrees in Floresville to 45 degrees in Kerrville to 90 degrees in Raleigh, CMQ Engineering’s Advantage 250™ demonstrates how a high-production ready mix concrete plant can be configured to meet different site requirements.
For producers in Raleigh, Durham, Chapel Hill, Charlotte, Greensboro, and throughout North Carolina, as well as ready mix producers across Texas and across the Southeast, that flexibility can make the difference between forcing a plant onto a site and engineering a plant specifically for it.
The Advantage 250™ doesn’t require every site to fit the plant. The plant can be configured to fit the site.
